SOLAR LED STREET LIGHT

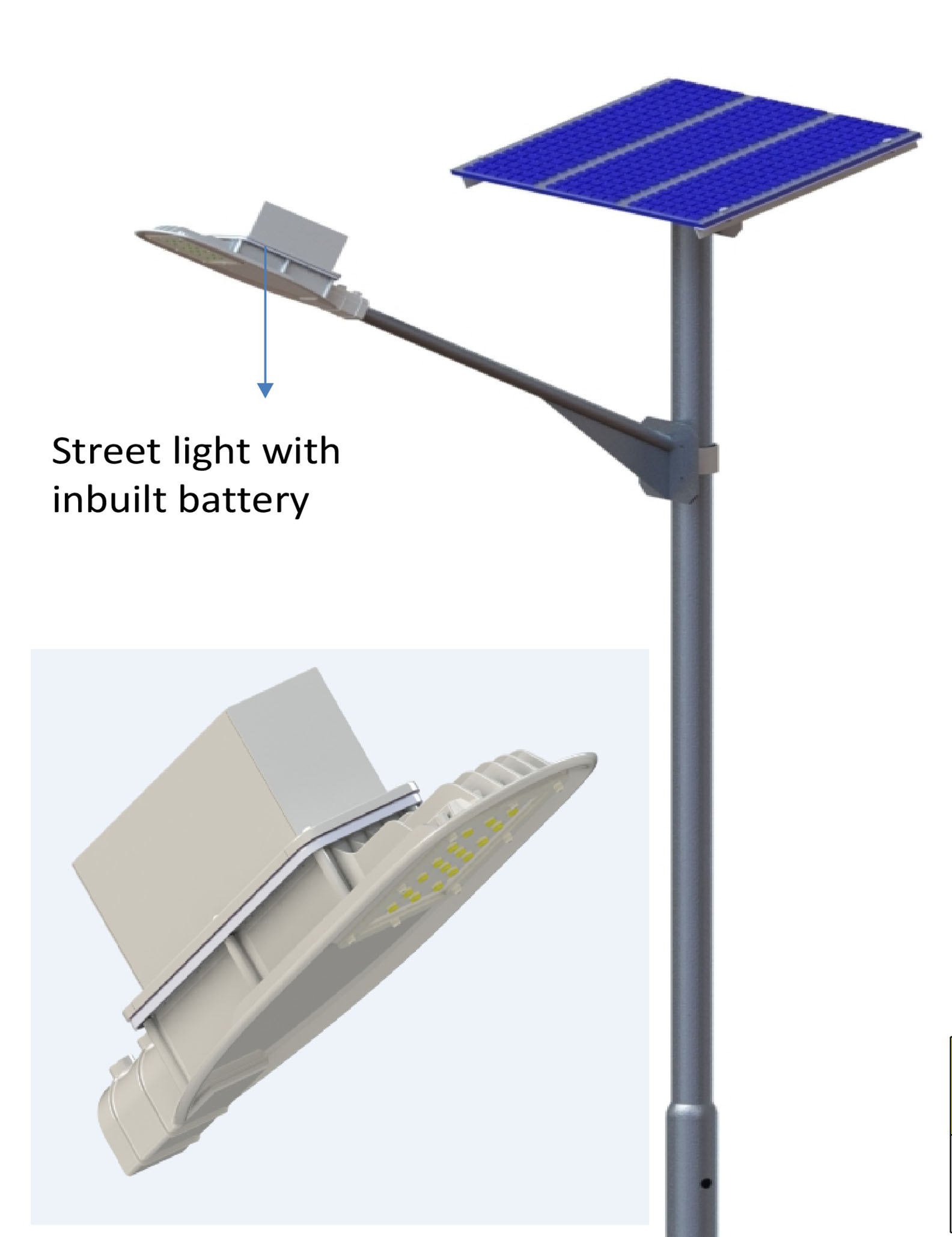

Integrated All In One Solar LED Street Light



Specification:

Solar street light( 6W~ 30W)
Inbuilt MPPT charge controller
Dimming , Motion Sensor (optional) and Dusk to Dawn Operation
LED output efficacy:- 140Lm/watt
Efficiency :- 90% -
Luminary : IP65 rating.
Autonomy : 2 Days
Warranty:- 2years.

Working Process

Automatic Dusk to dawn.
The system will automatically switch ON at Dusk and will operate with multi stage dimming's based on the customised program with motion sensor.

Solar Panel

High Efficiency Multi/ Polycrystalline PV module

Battery

Battery ( Inbuilt )
Maintenance free Lithium-Ferro phosphate (LiFePO4)

Pole Specifications

GI ,4 Mtrs ~6 Mtrs,76 ~ 85 OD

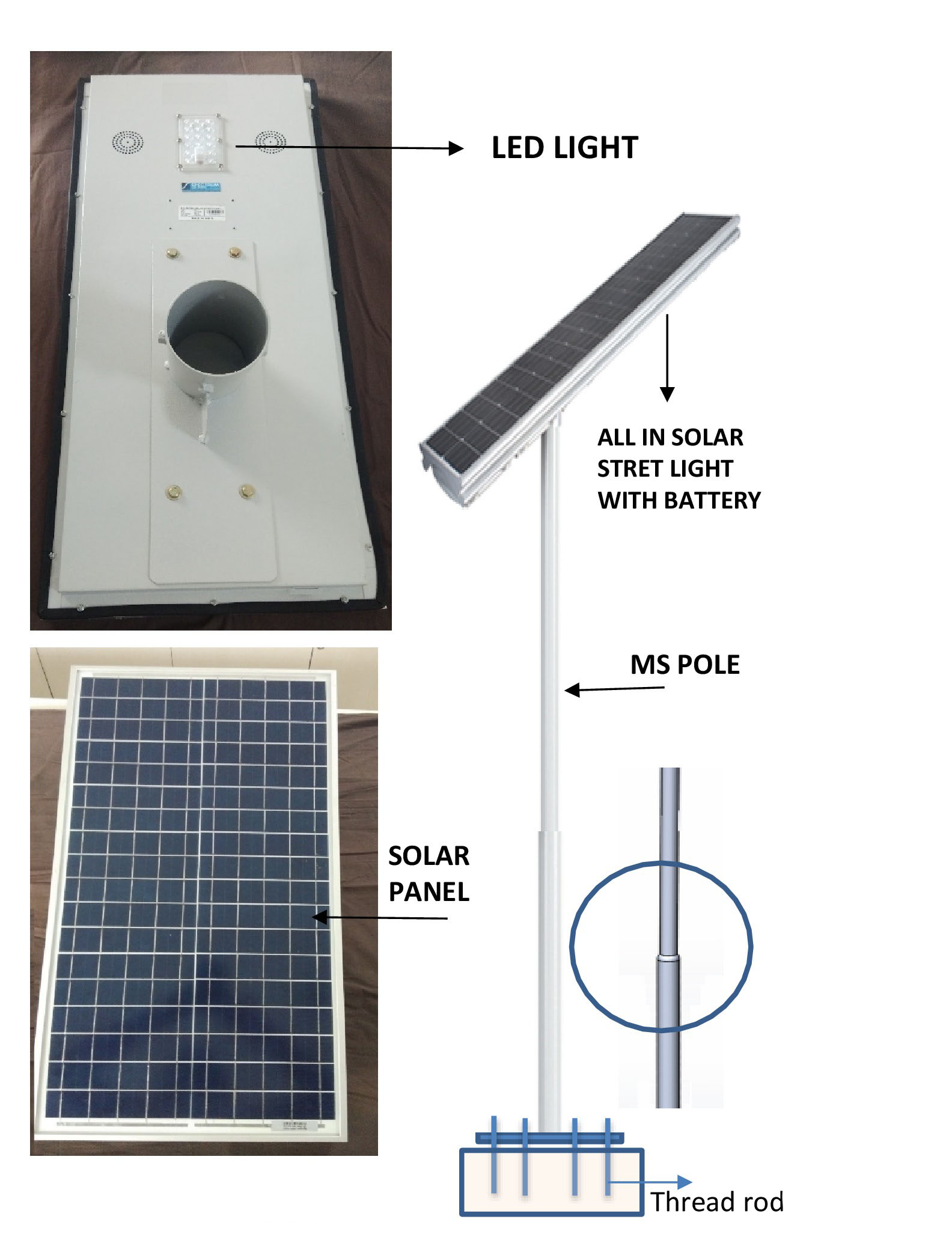

CUSTOMISED SOLAR LED STREET LIGHT



Specification:

Solar street light( 6W~ 50W)
Inbuilt MPPT charge controller
Dimming , Motion Sensor (optional) and Dusk to Dawn Operation
LED output efficacy:- 140Lm/watt
Efficiency :- 90%.
Luminary : IP65 rating.
Autonomy : 2 Days
Warranty:- 2years.

Working Process

Automatic Dusk to dawn.
The system will automatically switch ON at Dusk and will operate with multi stage dimming's based on the customised program with motion sensor.

Solar Panel

High Efficiency Multi/ Polycrystalline PV module : 50 ~ 100Wp.

Battery Specifications

Battery capacity .( Inbuilt ))
Lithium-Ion – 12Ah ~40AH, 11.1V ~12.8V Nominal voltage.

Pole:- suggested

GI ,4 mtrs ~6 mtrs,2 mm thickness,76 OD
